Jupiterswap: embedded swaps with Jupiter Plugin

How do you embed Jupiter swaps in an existing app?

Jupiter Plugin supplies a browser-based swap component that you load and initialize in your application, using either the window-object integration or the npm package.

Loading the component

Script-loaded applications

The script-based approach exposes window.Jupiter.init(). Initialization belongs after the loader becomes available and, for integrated mode, after the target element exists. Plain HTML can initialize through the page's load event. The host application supplies configuration while Plugin supplies the swap interface.

Module-based applications

The @jup-ag/plugin package exposes an init function for module-based builds. Its integration includes the package stylesheet and requires maintaining its dependencies. This approach fits an application's build process; the script-based approach loads the component through the browser.

React integrations initialize after mounting, when the rendered container exists. Next.js integrations also need a client-side execution boundary because Plugin uses the browser's window and document objects. Calling initialization during server rendering cannot mount a browser interface.

Loader readiness and container readiness are separate dependencies. A rendered target element does not establish that the Plugin script has finished loading.

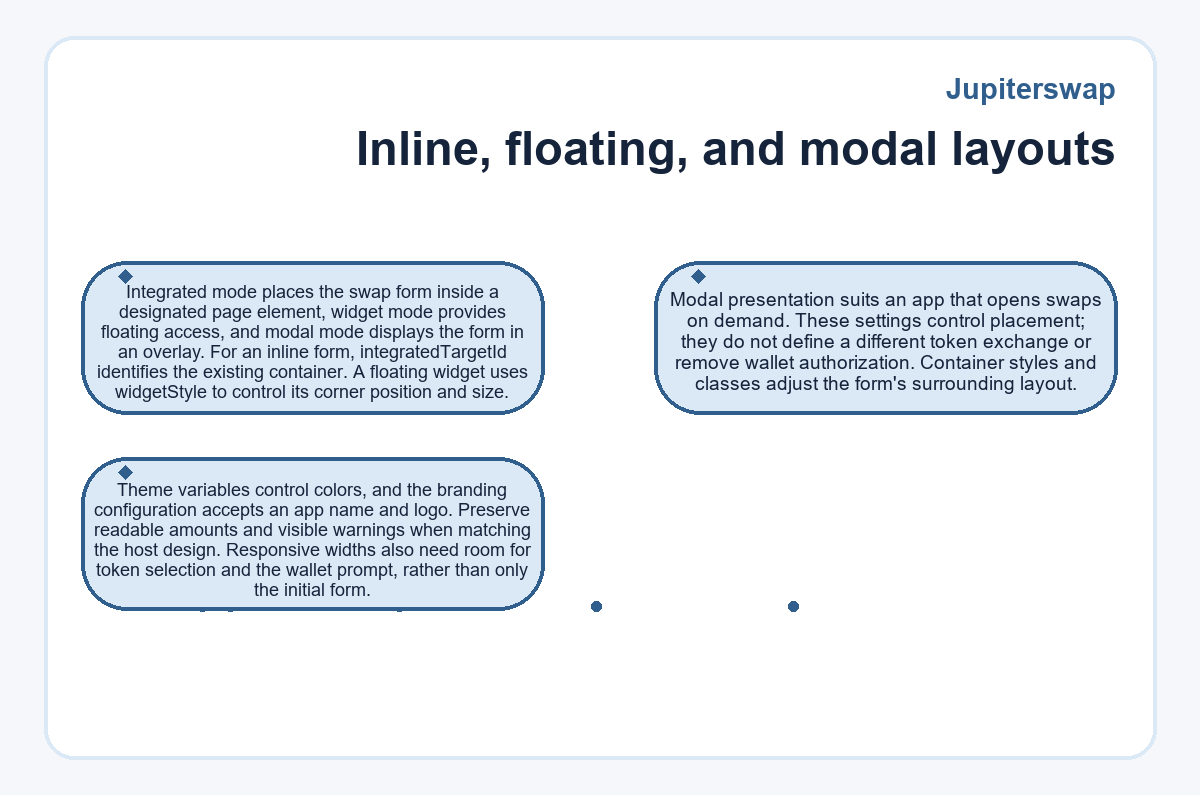

Inline, floating, and modal layouts

Integrated mode places the swap form inside a designated page element, widget mode provides floating access, and modal mode displays the form in an overlay.

For an inline form, integratedTargetId identifies the existing container. A floating widget uses widgetStyle to control its corner position and size. Modal presentation suits an app that opens swaps on demand. These settings control placement; they do not define a different token exchange or remove wallet authorization.

Container styles and classes adjust the form's surrounding layout. Theme variables control colors, and the branding configuration accepts an app name and logo. Preserve readable amounts and visible warnings when matching the host design. Responsive widths also need room for token selection and the wallet prompt, rather than only the initial form.

Open full-size image

Wallet passthrough and transaction authorization

Wallet passthrough lets Plugin share the connection that an application already manages, provided the host supplies its wallet context and synchronizes changes with the component.

Set enableWalletPassthrough when the host owns wallet connection. The passthroughWalletContextState supplies that context, and syncProps() updates it when connection state changes. The onRequestConnectWallet callback can invoke the application's own connection flow. This keeps the embedded form aligned with the wallet that the host uses.

An application without an existing provider can use Plugin's built-in connection through Unified Wallet Kit and Wallet Standard support. Both arrangements need a connected wallet with the signing functions that execution requires. Supplying a public address alone does not supply a transaction-signing function.

Jupiter Plugin calls the connected wallet's signTransaction function before submitting a swap. The host's connection callback opens its wallet-selection flow; transaction signing uses the separate method supplied in the wallet context. Passthrough needs both pieces when the application manages connection itself.

Token presets, field locks, and amount modes

Form presets choose what the swap interface initially displays, while field locks restrict what users can change; neither setting establishes that a requested swap has available liquidity.

initialInputMint and initialOutputMint identify the starting tokens by mint address. fixedMint locks the matching side of the form, so it must correspond to the configured input or output mint. Setting an initial token alone leaves its selector editable. Similarly, initialAmount prefills an amount, while fixedAmount prevents amount edits.

The swapMode setting distinguishes input-driven and output-driven requests. ExactIn fixes the input amount; ExactOut requests a specified output amount. ExactInOrOut allows either amount-entry direction. A usable quote remains necessary for the selected request. Locking a field does not guarantee execution, create liquidity, or establish that a swap fulfills a separate payment obligation.

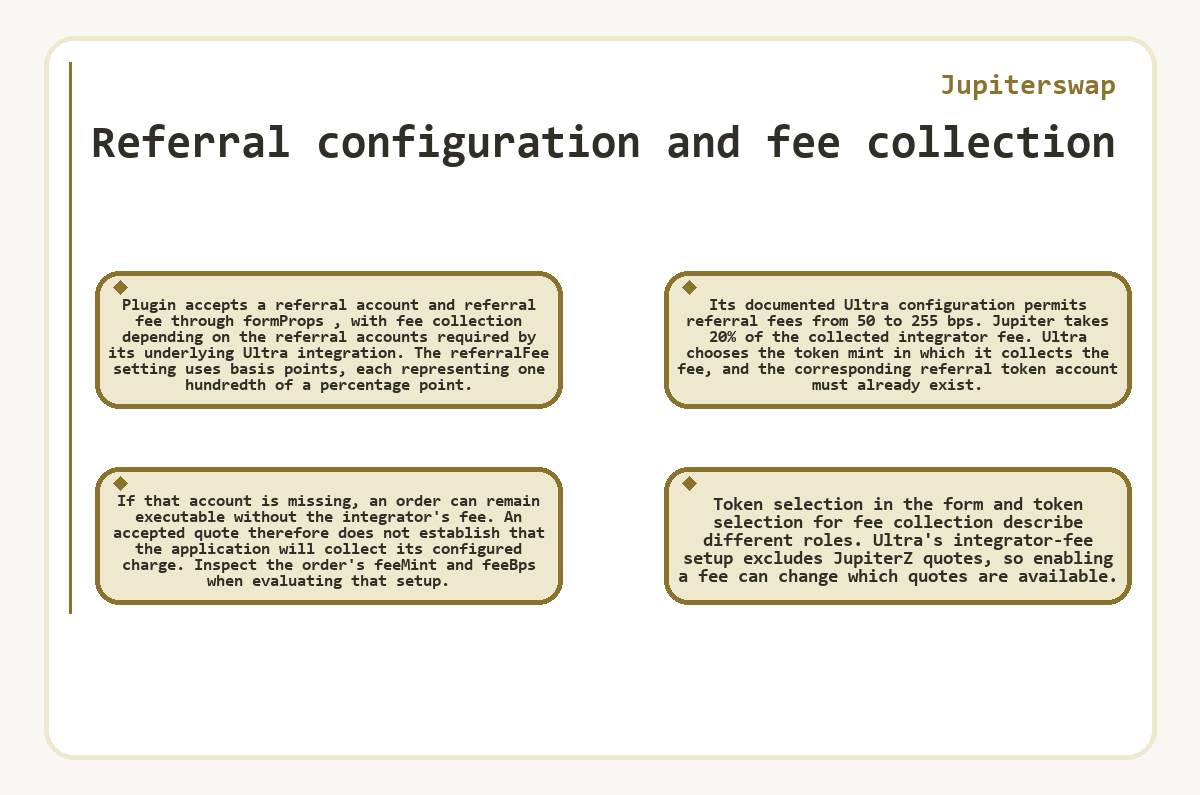

Referral configuration and fee collection

Plugin accepts a referral account and referral fee through formProps, with fee collection depending on the referral accounts required by its underlying Ultra integration.

Open full-size image

The referralFee setting uses basis points, each representing one hundredth of a percentage point. Its documented Ultra configuration permits referral fees from 50 to 255 bps. Jupiter takes 20% of the collected integrator fee. Ultra chooses the token mint in which it collects the fee, and the corresponding referral token account must already exist. If that account is missing, an order can remain executable without the integrator's fee. An accepted quote therefore does not establish that the application will collect its configured charge.

Inspect the order's feeMint and feeBps when evaluating that setup. Token selection in the form and token selection for fee collection describe different roles. Ultra's integrator-fee setup excludes JupiterZ quotes, so enabling a fee can change which quotes are available.

The boundary between Plugin and the swap API

The documented Plugin integration delegates transaction sending, wallet balances, and token information to Ultra, while Jupiter has superseded the standalone Ultra Swap API with Swap V2. The API maintenance notice applies to Ultra; it does not establish that Plugin has stopped operating. An app using the widget must distinguish its component version from a separately integrated API. Changing a direct API integration does not, by itself, update an embedded Plugin build.

From component loading to a reported swap result

A mounted swap form establishes that the interface is available; the execution response establishes whether the submitted swap succeeded, so an app should handle those states separately.

For an app embedding a form with a specified input amount, the component and its service have different responsibilities. Plugin handles the interface and wallet-signing request. Ultra supplies the order and processes the signed submission. Their relationship lets the host present swaps without treating every interface event as a completed exchange.

From component loading to a reported swap result in brief

Stage	Component or service behavior	Required condition or observable result
Load Plugin	Make the browser component available.	The loader or module must be ready.
Mount the form	Initialize the selected display mode.	Integrated mode needs an existing target element.
Connect the wallet	Use built-in connection or host passthrough.	The wallet must expose the required signing function.
Obtain an order	Request a quote for the selected tokens and amount.	Execution needs a usable order with transaction data.
Request a signature	Ask the wallet to sign the supplied transaction.	Wallet authorization must succeed before submission.
Submit the signed transaction	Send it with the associated request identifier.	A submission alone does not establish success.
Report the execution result	Expose success or error information to the host.	Use the returned execution status and result.
Completion	The success payload identifies the transaction and executed amounts.	Use execution data when displaying the completed exchange.

These are conceptual stages, not a requirement for a separate transaction at each row. An existing wallet connection can precede form initialization. The signature still precedes submission, and the execution response still determines the reported result.

Open full-size image

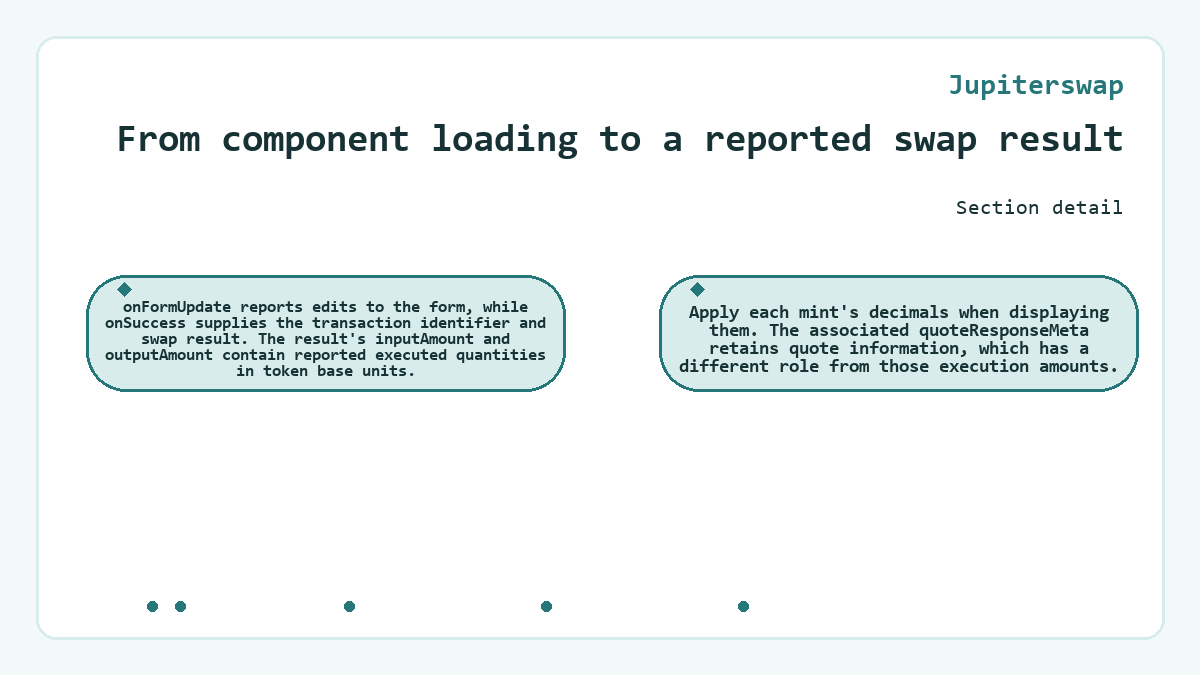

onFormUpdate reports edits to the form, while onSuccess supplies the transaction identifier and swap result. The result's inputAmount and outputAmount contain reported executed quantities in token base units. Apply each mint's decimals when displaying them. The associated quoteResponseMeta retains quote information, which has a different role from those execution amounts.
